LEO · KU-BAND · SATCOM

Azhdarchidae

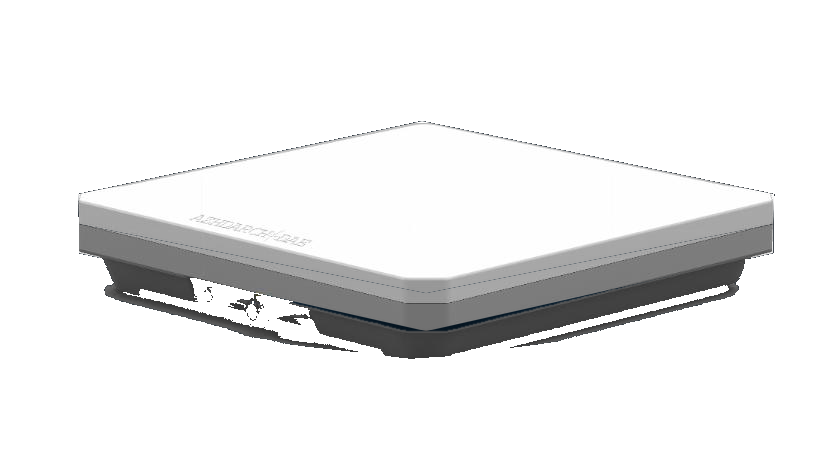

Electronically steered user terminal for reliable, high-bandwidth low-Earth-orbit satellite communications.

Discuss your application ↗View specifications ↓

AZH-01
PHASED ARRAY TERMINAL
KU / LEO

SYSTEM OVERVIEW

Track faster. Connect longer.

Azhdarchidae is a Ku-band phased-array terminal designed for low-Earth-orbit satellite communications. Its integrated electronic beam-steering technology tracks fast-moving satellites in real time, delivering stable, high-bandwidth transmission and reception without a mechanical rotation system.

Compared with conventional dish antennas, the low-profile architecture offers faster response, a smaller installation footprint, stronger weather resistance and substantially lower maintenance requirements.

KEY FEATURES

One terminal. A complete signal path.

Designed as an integrated platform that can be adapted to different network, polarization and intermediate-frequency requirements.

Highly integrated

RF, beamforming ICs, PA, LNA and antenna elements integrated into one system.

Flexible UDC

Customizable up/down conversion supports MIMO streams and varied intermediate-frequency spectra.

Polarization control

Controllable linear and circular polarization for adaptable satellite links.

TECHNICAL SPECIFICATIONS

Ku-band performance.

Preliminary system specifications. Contact Ultraband for configuration options and the latest product information.

Tx frequency12.75–14.5 GHz

Rx frequency10.7–12.75 GHz

Polarization isolation< −20 dB

Tx / Rx isolation< −30 dB

Beamwidth< 4°

Beam scan angle±45°

EIRP> 66 dBm

G/T6 dB/K

Weight16 kg

Dimensions56 × 56 × 11 cm

BUILD YOUR SATELLITE LINK

Explore Azhdarchidae for your application.

Talk with our team about platform configuration, integration and availability.
